FSM thermostat
Thermostat with FSM and ADC

This project implements a thermostat with an analog LM35 temperature sensor, and 2 LEDs.

You can access the source code of the project in the following link: Thermostat with FSM and ADC.

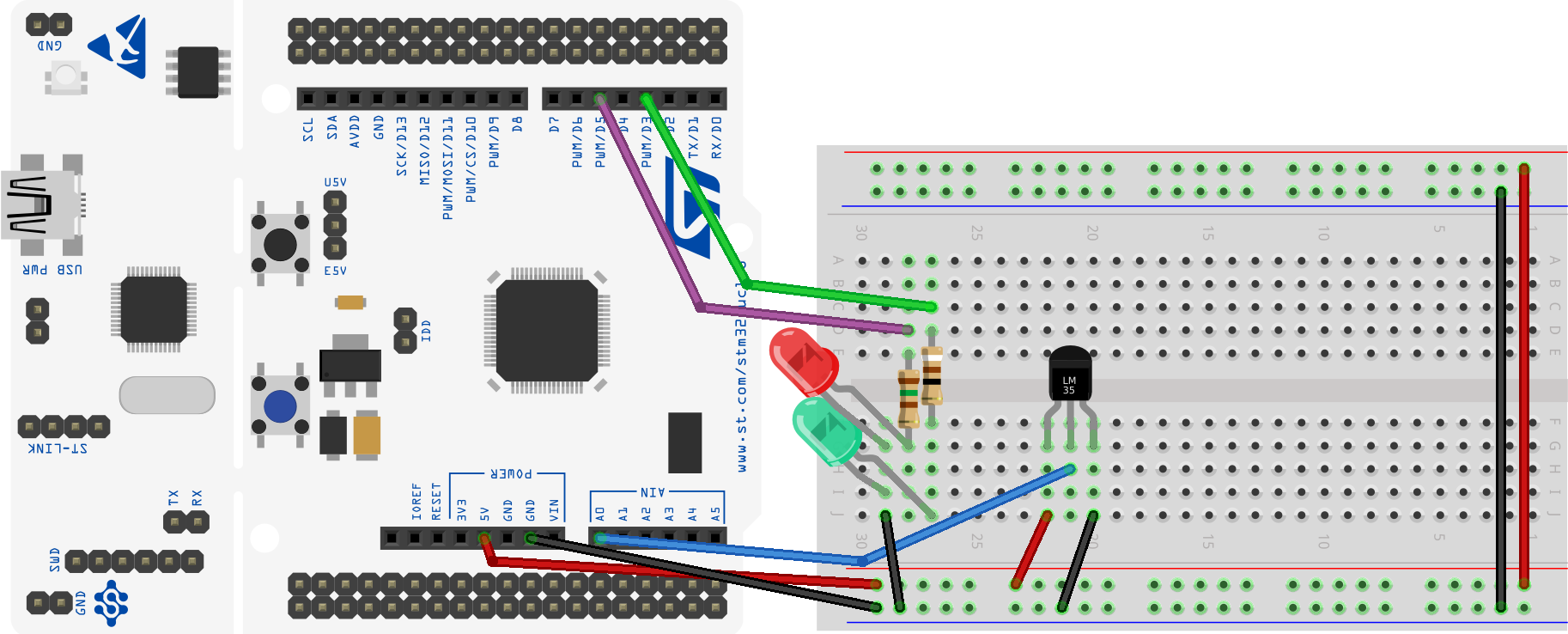

The HW configuration is shown in the following picture:

HW Thersmostat

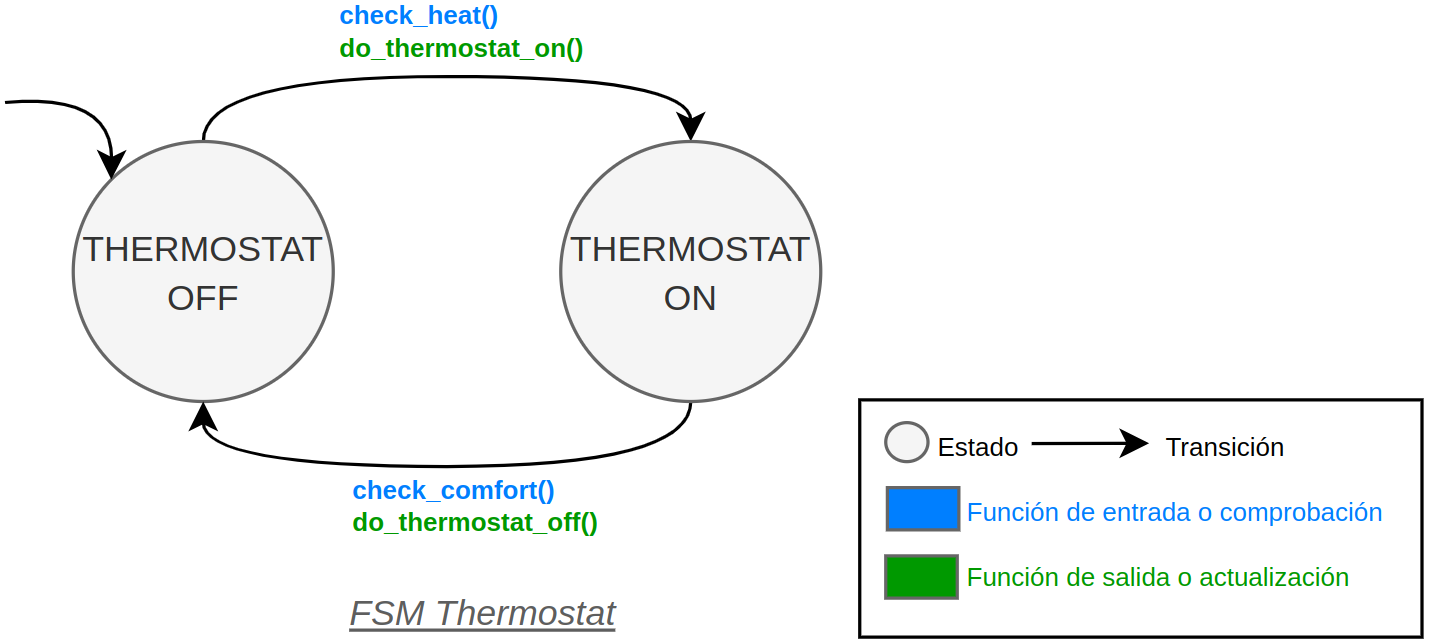

The system uses an FSM to manage the different states of the system and hardware. This picture shows the FSM of the system:

FSM Thersmostat

The thermostat makes a measurement every time its timer is triggered. The measurement is done by the ADC peripheral. The ADC is configured to sample the temperature sensor in single mode. The timer is configured in the PORT file of the system.

Parameter Value
Define label THERMOSTAT_MEASUREMENT_TIMER
Timer TIM2
Interrupt TIM2_IRQHandler()
Time interval 1 second
Priority 2
Subpriority 0

You can generate as many thermostat as you want by creating a new FSM and assigning the corresponding peripherals to the system. The system which is implemented in the main.c file. The system uses the following peripherals:

Temperature sensor

The temperature sensor used in the system is the LM35 (see LM35 datasheet). The sensor is located in the shield provided by the university. The sensor is connected to the pin PA0. The sensor is configured as an analog input with no push-pull resistor. The sensor is sampled in single mode with a sampling period given by the interruptions of a timer. All the configurations of the ADC are by default. The ADC is configured to interrupt when the conversion is completed. The ADC is configured with the following settings:

Parameter Value
Variable name temp_sensor_thermostat
Pin PA0 (A0 on Nucleo)
ADC ADC1
Channel 0
Mode Analog
Pull up/ down No push no pull
ISR ADC_IRQHandler()
Priority 1
Subpriority 0

LEDs

There are two LEDs in the system. The first LED is the led_heater_active (red) and the second LED is the led_comfort_temperature (blue). The led_heater_active is used to indicate that the temperature is below the threshold and the heater activates to warm the thermal system. The led_comfort_temperature is used to indicate that the temperature is above the threshold and the thermal system is off. The LEDs are within an RGB LED soldered in the shield provided by the university. The LEDs are connected to the pins PB4 and PB5. The LEDs are configured as outputs with no push-pull resistor. The LEDs are turned on when the system starts. The LEDs are configured with the following settings:

Parameter Value
Variable name led_comfort_temperature
Pin PB5 (D4 on Nucleo)
Mode Output
Pull up/ down No push no pull
Parameter Value
Variable name led_heater_active
Pin PB4 (D5 on Nucleo)
Mode Output
Pull up/ down No push no pull

There is also a third LED, the led_on (green), which is used to indicate that the system has started. This LED is not part of the system. The led_on is turned on when the system starts and is turned off after 500 ms. This LED can be disabled by commenting the line #define USE_LED_ON in the main.c file. The led_on is connected to the pin PB3.

Parameter Value
Variable name led_on
Pin PB3 (D3 on Nucleo)
Mode Output
Pull up/ down No push no pull

[!WARNING] If you want to use the printf() function using the SWO, you must change the pin of the led_on to another pin. The SWO pin is the PB3 pin. If you use the led_on, the SWO pin will not work. If you want to use the SWO, you must comment the line #define USE_LED_ON in the main.c file. In this case, **if you are using the shield provided by the university, the pin PB3 will be active turning on the led_on constantly and you won't see pure red or blue LEDs but a mix of colors instead.

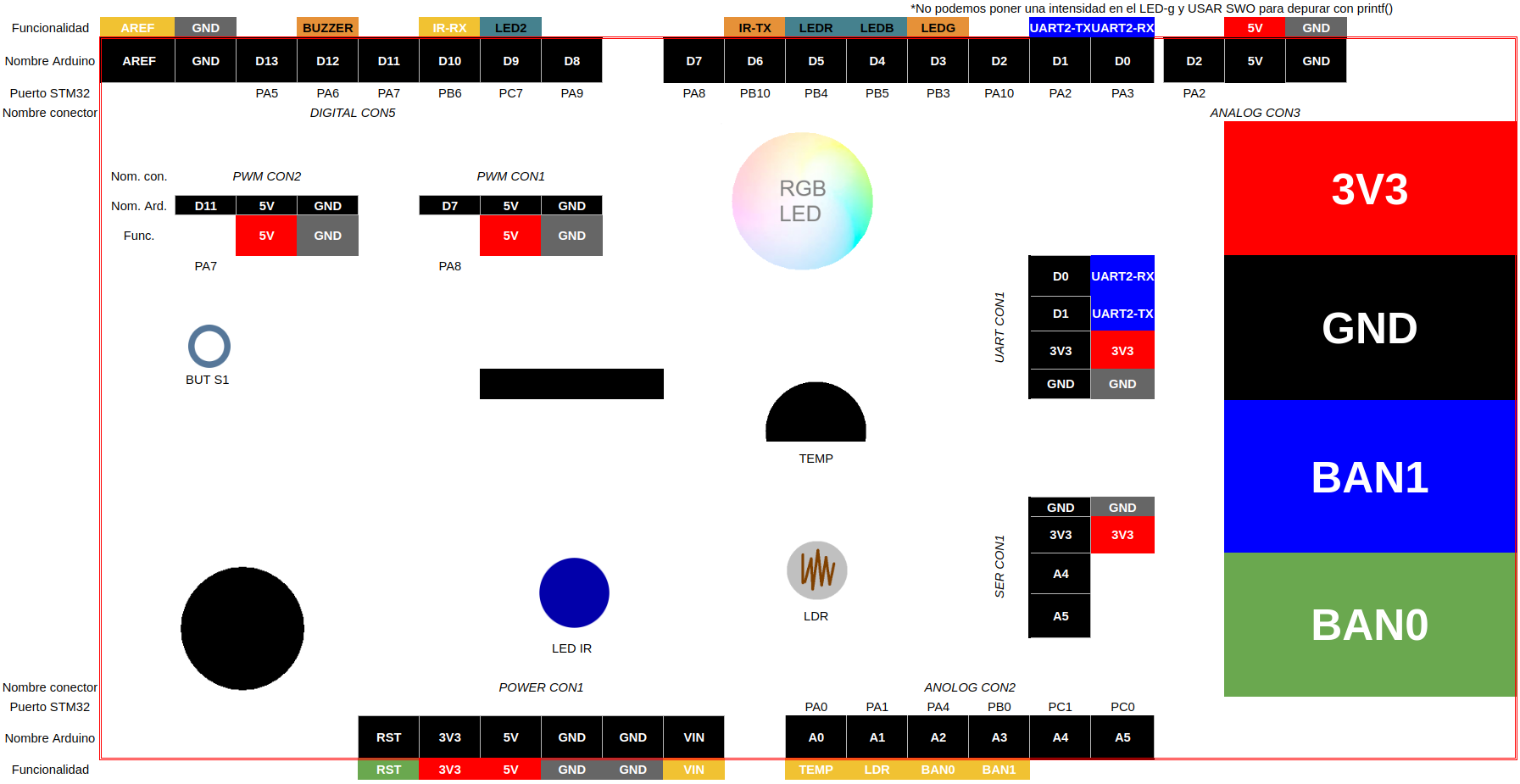

Look at the following picture to see the shield provided by the university:

Shield

References
